The transition towards electric vehicles (EVs) is a cornerstone of the global effort to reduce carbon emissions and combat climate change. At the heart of this transition lies the development and expansion of EV charging infrastructure, a critical element that ensures the practicality and convenience of using electric vehicles for daily transportation.
As EVs become more prevalent, understanding the diversity and functionality of EV charging ports becomes essential for consumers, manufacturers, and policymakers alike. This article aims to shed light on the variety of EV charging ports available, moving beyond the commonly known AC (Alternating Current) and DC (Direct Current) types to explore a range of connectors that cater to different vehicles, regions, and charging needs.
Table of Contents
Understanding EV Charging
AC vs. DC Charging
At the core of EV charging technology are two types of current: AC (Alternating Current) and DC (Direct Current). AC charging is typically used for home and public charging stations, where the vehicle’s onboard charger converts AC electricity from the grid into DC electricity to charge the battery. This method is widespread due to its compatibility with existing electrical infrastructure. DC charging, on the other hand, involves supplying DC electricity directly to the vehicle’s battery, bypassing the onboard charger for a much faster charging process. This method is primarily used in fast-charging stations designed for rapid charging during long trips.
Charging Levels
The charging process is categorized into three main levels, reflecting the charging speed and the infrastructure required:
- Level 1 Charging: Utilizes a standard household AC outlet (110-120V) for a slow charging process, often taking overnight to fully charge an EV.
- Level 2 Charging: Involves higher-powered AC charging (typically 208-240V), significantly reducing charging time and is suitable for both home and public charging.
- DC Fast Charging: The fastest charging option, utilizing DC power to charge an EV battery up to 80% in as little as 20 minutes to an hour, depending on the battery capacity and the charging station’s power output.
EV Charging ports: An overview
| EV Charging Port | Region | Power Capacity | Vehicle Compatibility | Charging Scenario |
| Type 1 (SAE J1772) | North America, parts of Asia | Up to 19.2 kW | Wide range of EVs, primarily in North America | Home, workplace, and public charging (Level 1 & 2) |
| Type 2 (IEC 62196) | Europe, Australia, Asia | Up to 43 kW (AC), higher with DC adapters | Wide range of EVs, especially in Europe | Home, workplace, and public charging; supports fast charging with DC adapters |
| CCS (Type 1 & 2) | Global | Up to 350 kW | EVs supporting fast charging, wide manufacturer support | Rapid public charging |
| CHAdeMO | Japan, international | Up to 62.5 kW, aiming for 400 kW | Mainly Japanese EVs, some international adoption | Rapid public charging |
| GB/T (GBT) | China, some international | Up to 250 kW | Chinese EVs and some international markets | Public charging, including rapid charging |
| Tesla Supercharger | North America, Europe | Up to 250 kW | Tesla vehicles, opening to other brands | Rapid public charging |
Common EV Charging Ports
The landscape of electric vehicle (EV) charging is anchored by several common ports, pivotal for everyday use. These connectors, including Type 1 (SAE J1772) and Type 2 (IEC 62196), serve as the backbone of the current EV infrastructure, facilitating the majority of home, workplace, and public charging scenarios.
Type 1 (SAE J1772)
- Description and Technical Specifications: The Type 1 connector, also known as SAE J1772, is a standard for electrical connectors for electric vehicles primarily used in North America and parts of Asia. It supports AC charging up to 19.2 kW and operates on a 120V or 240V supply.
- Predominant Regions of Use: This EV charging port is most commonly found in the United States, Canada, and parts of Asia.
- Compatible Vehicles and Charging Scenarios: Type 1 connectors are used by a wide range of EVs for Level 1 and Level 2 charging, making them suitable for home charging, workplace, and public charging stations.

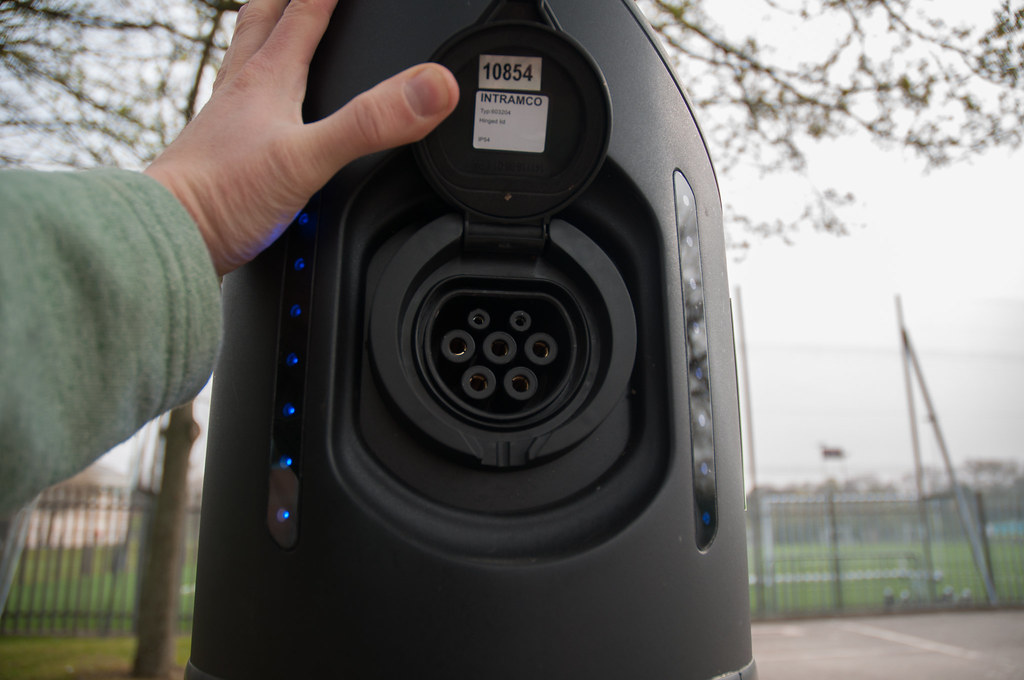

Type 2 (IEC 62196)
- Description and Technical Specifications: The Type 2 connector, defined by the IEC 62196 standard, is the most common AC EV charging port in Europe. It supports charging up to 43 kW in AC mode and can also be used in DC mode with adapters for higher power levels.
- Adoption in Europe and Other Regions: Type 2 is the standard connector for charging electric vehicles in Europe, with increasing adoption in Australia and Asia.
- Compatibility with Home and Public Charging: Due to its versatility and higher power capacity, Type 2 connectors are ideal for both home and public charging scenarios, including fast charging stations when used with a DC adapter. This is one of the reasons why BCC EV chargers are equipped with Type 2 EV charging ports.
DC Fast EV Charging Ports
As EVs evolve to offer longer ranges and quicker turnaround times, DC fast EV charging ports are becoming increasingly crucial. These ports, such as the Combined Charging System (CCS), CHAdeMO, and GBT (GB/T), enable rapid charging, significantly reducing waiting times and making long-distance EV travel more feasible.
Combined Charging System (CCS)
- CCS1 and CCS2 Variants: The Combined Charging System (CCS) comes in two main variants: CCS1, used primarily in North America, and CCS2, used in Europe and other regions. The primary difference between the two lies in the shape of the AC connector portion, with CCS1 designed to fit the Type 1 AC port and CCS2 fitting the Type 2 AC port.
- Technical Specifications and Vehicle Compatibility: CCS supports DC fast charging, with power levels up to 350kW under the latest standards. It is compatible with a wide range of electric vehicles, as many manufacturers have adopted CCS for its scalability and support for rapid charging.
- Advantages of CCS for Rapid Charging: The primary advantage of CCS is its integration of AC and DC charging capabilities into a single port, allowing for a broad range of charging speeds suitable for daily use and long trips. Its high power capacity makes it ideal for quick recharges during longer journeys.
CHAdeMO
- Origin and Technical Details: CHAdeMO is a DC fast charging standard developed in Japan. It supports charging powers up to 62.5 kW, with newer versions aiming for up to 400 kW to compete with other fast-charging standards.
- Vehicle Compatibility and Usage: CHAdeMO is widely used in Japanese electric vehicles and has seen adoption in various international markets. It is known for its high level of safety and reliability.
- Future Outlook and Adoption: Although CHAdeMO remains popular, especially in Japan, the global shift towards CCS is evident. However, this EV charging port continues to evolve, and its commitment to high-speed charging and vehicle-to-grid (V2G) capabilities could ensure its relevance in specific markets and use cases.
GBT (GB/T)
- Description of China’s National Standard for EV Charging: GB/T, or Guobiao standard, is China’s national standard for EV charging ports. It covers both AC and DC charging scenarios, with the DC version designed for fast charging.
- Technical Specifications and Global Usage: GB/T supports charging powers up to 250 kW, making it competitive with other fast-charging standards. While predominantly used in China, GB/T-equipped vehicles and chargers are also found in regions with significant Chinese vehicle imports.
- Comparison with Other DC Fast Charging Standards: GB/T differs from CCS and CHAdeMO primarily in its connector design and communication protocol. It underscores China’s approach to building a comprehensive and unified EV infrastructure but faces challenges in global compatibility due to differing regional standards.
Proprietary and Less Common EV Charging Ports
Beyond the universal and fast charging options, a niche of proprietary and less common EV charging ports exists. These include Tesla’s Supercharger network and other specialized connectors that cater to specific vehicle makes or regions.

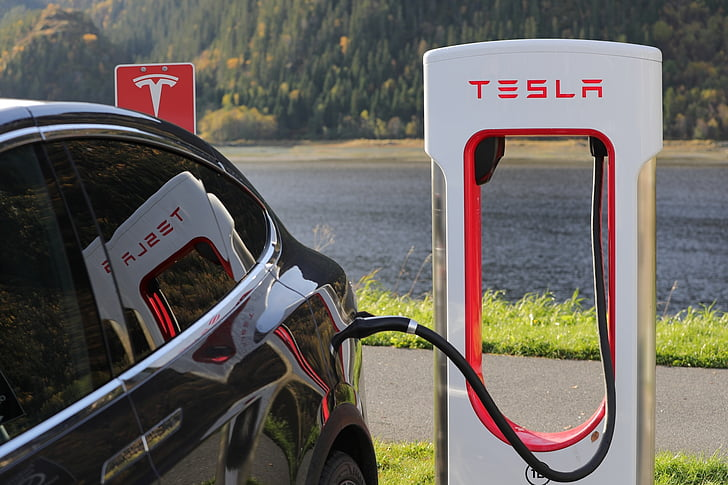

Tesla (North America and Europe)
- Overview of Tesla’s Proprietary Charging Technology: Tesla’s proprietary Supercharger network uses a unique connector for fast charging. In North America, this connector is different from any other charging standard, while in Europe, Tesla has moved to incorporate the Type 2 CCS standard for compatibility.
- Differences between Tesla Connectors in North America and Europe: The primary difference lies in the physical connector and charging protocol. In Europe, Tesla’s adoption of CCS2 allows Tesla vehicles to use a wide range of public charging networks.
- Supercharger Network and Compatibility with Other Vehicles: Tesla’s Supercharger network is renowned for its high-power charging capabilities, up to 250 kW. While designed for Tesla vehicles, the company has begun opening its network to other manufacturers, expanding the infrastructure’s utility.
Future of EV Charging Ports
As the electric vehicle (EV) market continues to expand, the infrastructure supporting it, especially EV charging ports, is evolving rapidly. Several key trends are shaping the future of EV charging technology, including the push for faster charging times, the integration of smart charging capabilities and integration into decentralized charging networks like GoCHarge Tech, and the drive towards more sustainable and efficient charging solutions. These developments promise to enhance the convenience and appeal of electric vehicles, potentially accelerating their adoption worldwide.
Conclusion
Understanding the different types of EV charging ports is more than a technical necessity; it’s a key factor in electric vehicles’ widespread adoption and success. As the EV market grows, the diversity in charging technologies reflects both the rapid innovation in the field and the varying needs of drivers around the world. Consumers are encouraged to consider the types of charging ports available, and how they align with their driving habits and lifestyle, as part of their EV purchasing decisions.
The evolution of EV charging infrastructure is not just about facilitating the transition to electric vehicles; it’s a critical component of the broader move towards sustainable transportation. By improving the convenience, speed, and accessibility of EV charging, we can support a future where electric vehicles play a pivotal role in reducing global carbon emissions and fostering a cleaner, greener planet.
Additional Resources
For those seeking detailed technical specifications of each EV charging port and up-to-date information on EV charging standards, the following sources are invaluable:
| Resource | Description | Website |
| IEC (International Electrotechnical Commission) | Comprehensive standards for electrical technology, including EV charging systems. | IEC Website |
| SAE International | Detailed documentation on automotive standards, including Type 1 (SAE J1772) charging port. | SAE International Website |
| CHAdeMO Association | Official source for CHAdeMO charging standards and technological developments. | CHAdeMO Website |
| China Electricity Council | Insights into China’s GB/T standards for EV charging. | China Electricity Council Website |
| European Automobile Manufacturers Association (ACEA) | Information on the Type 2 (IEC 62196) standard and its adoption across Europe. | ACEA Website |
| Tesla | Tesla’s proprietary charging technology and Supercharger network. | Tesla W |
